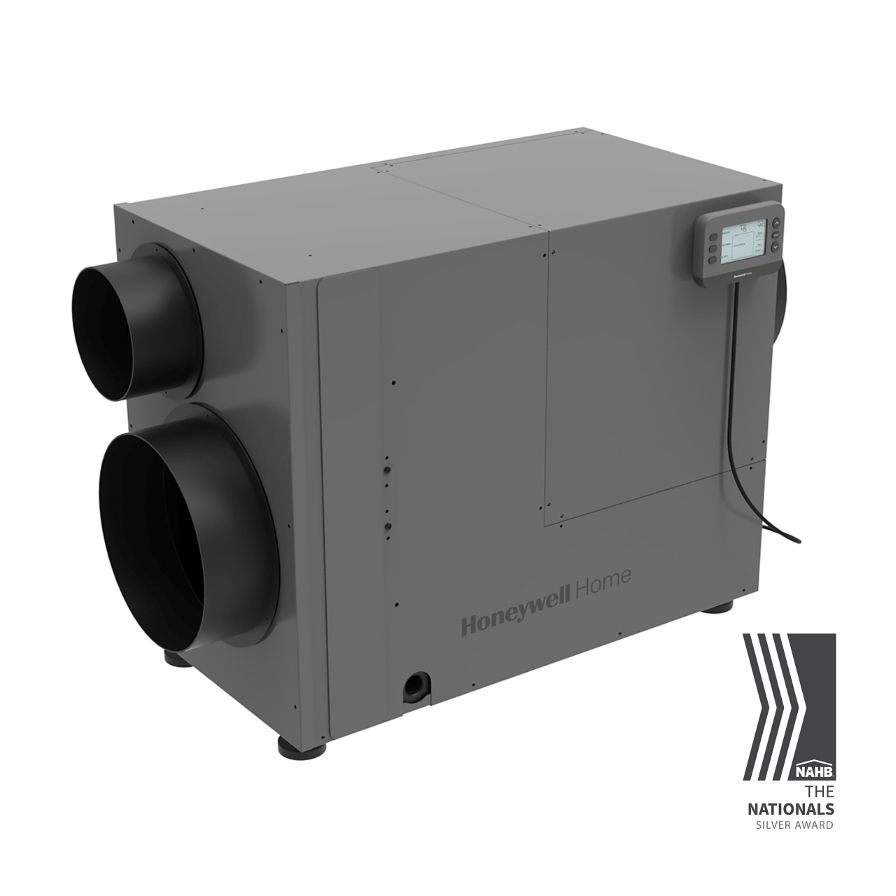

DHM090R4000 SPECIFICATIONS:

Input ratings DHM090

Electrical input voltage: 120 VAC, 60 Hz nominal, 4.6A. Rated @26.7°C / 60% RH Cpsr 29 LRA / 5.1 RLA Impeller rated 0.44 FLA Capacity: 90 PPD Energy performance: 2.49 liters (5.26 pints) per kilowatt hour (KWH) Standards and approval body requirements: ETL Listed per UL 60335-1, 60335-2-40, CSA C22.2 No. 60335-1 and 60335-2-40 Product weight: 90lb Product dimensions in inches and mm (not including feet and collars): 27 (685) L x 14-¾ (375) W x 21 (534) H Media filter: MERV 8, 20” H x 14” W x 1” D Drain connection: 3/4” threaded female NPT connection. Duct connections: 10” round inlet and outlet. 6" round vent inlet. ABS plastic, compatible for connection to rigid or flexible ducting with sheet metal screws and/or tape. Cabinet: 20 gauge galvanized steel powder-coat painted. Insulation: R value 1 Compressor: Rotary-style, 8.1 KBTU Refrigerant: R32 @ 16.58 oz. 450 PSIG, High Side / 240 PSIG, Low Side Operating Temp Range (outside cabinet): 34°F to 130°F (1.1°C to 54.4°C) Operating humidity range: 0-95% RH Specifications Input Dehumidification temperature limits: 50°F to 110°F (10°C to 43.5°C) Inlet Air Temperature Ventilation temperature: -20 °F to 120 °F
