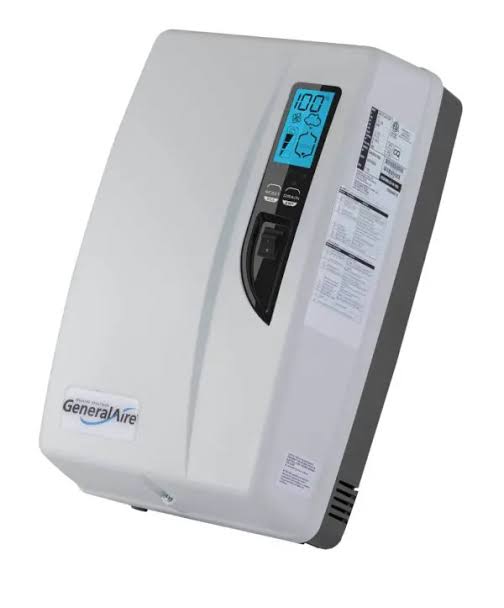

Generalaire 5500 Electrode Steam Humidifier
GF-5500 Basic Operation Video - Click Here
GF-5500 Introduction Video - Click Here
GF-5500 Initial Voltage Settings - Click Here
GF-5500 Initial Voltage Settings - Click Here
Maintenance:
Replace the Generalaire GF-55 cylinder a minimum of once per year at the start of the heating season.
Specs:
- Type: electrode steam
- Gallons Per Day: 115V = 15; 230V = 28.5
- Power: 115 / 230V (internal switch selector)
- Dimensions (Inches): 21 H x 14 W x 8.25 D
- Weight (pounds): 16
- For home sizes up to 5500 square feet
- Replacement Cylinder: Model 55 (GFI #7746) for both regular & low conductivity
- Pallet quantity: 16
- Ground connection: screw
- Conductivity range: 125 to 1250 µs/cm
- Water fill connection: 1/4" O.D. Compression adapter to 3/4" FPS
- Input water type: potable water (no demineralized or softened water)
- Drain water temperature: <140°F / <60°C
Features:
- One unit for both 115 & 230 V (via internal switch)
- One cylinder for both regular and low conductivity
- Spark plug style wire connectors for easy cylinder replacement
- Enhanced, easy-to-read control module
- One-screw cover release for easy access
- Screw permanently affixed to cover to prevent dropping, losing
- Water tempering for safety
- Includes installation kit and heavy duty, pre-drilled metal mounting straps that allow for installation to wall studs (16")
- Includes our NEW GFX4 (same as GFX3 but also allows for control of furnace blower motor)
